Georg Fischer Type 546 Ball Valve
Description
Description

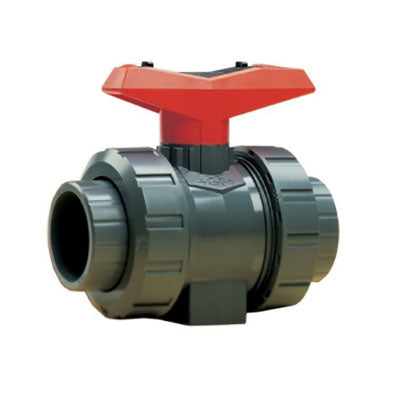

The Georg Fischer 546 ball valve is their top of the line valve for chemical process, water treatment, food and beverage and other industrial applications. This valve comes in both manual and actuated options. Available in a variety of material options from PVC to CPVC, ABS, PP-H and PVDF. Choose from Socket, Threaded NPT and Flanged ends (PVC Material). The ergonomic handle has a lockable option. A quality valve from GF Piping Systems.
Sizes Available: 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
Ends Available: 3/8" thru 2" - Socket & Threaded Ends Included, 2-1/2" thru 4" - Choose from Socket or Threaded (Flanged also available)
Main Valve Material: PVC
Seat Material: PTFE
O-Ring Material: EPDM or FPM (Others on request)
Standards / Listings: ASTM, ANSI, NSF 61, ISO 9393
Additional Info
Additional Info
Part Numbers:
- 161 546 341 (3/8" - EPDM)
- 161 546 342 (1/2" - EPDM)
- 161 546 343 (3/4" - EPDM)
- 161 546 344 (1" - EPDM)
- 161 546 345 (1-1/4" - EPDM)
- 161 546 346 (1-1/2" - EPDM)
- 161 546 347 (2" - EPDM)
- 161 546 348 (2-1/2" - EPDM)
- 161 546 349 (3" - EPDM)
- 161 546 350 (4" - EPDM)
- 161 546 351 (13/8" - FPM)
- 161 546 352 (1/2" - FPM)
- 161 546 353 (3/4" - FPM)
- 161 546 354 (1" - FPM)
- 161 546 355 (1-1/4" - FPM)
- 161 546 356 (1-1/2" - FPM)
- 161 546 357 (2" - FPM)
- 161 546 358 (2-1/2" - FPM)
- 161 546 359 (3" - FPM)
- 161 546 360 (4" - FPM)
