• Continuous flow - no shutdown for cleaning
• Rugged tapered plug
• Lift jack prevents plug galling
• Quick open cover
• Large baskets
• Threaded drain
• Machined basket seat
• Perforated or mesh SS basket
Get a Quote on the 50 Strainer or Replacement Parts

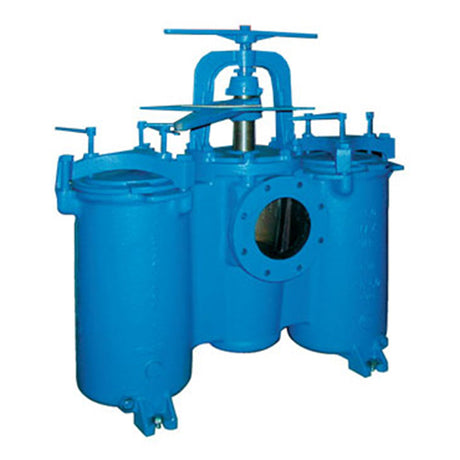

Duplex strainers, such as the Eaton Model 50, are perfect for batch or continuous process applications because it doesn’t require any line shutoff to access the strainer baskets for changing or cleaning. The Model 50 duplex strainer is a pressure rated plug valve with integral straining baskets. No tools needed to open the cover – it’s quick and easy with the swing away yoke design. This strainer is made so that switching to the other basket does not stop the flow because of the unique port design in the diverter plug.
Options: | ||
• Iron, Bronze, Carbon or Stainless Steel | • Flanged connections in 5", 6" or 8" Size | |
• Optional ductile iron construction | • Choose your basket mesh or perforation (20-400 or 1/32 - 12") | |
• Choose seal material: Viton, TFE, EPDM | • Optional drain/vent valves or taps |
Size | Material (wetted parts) | Plug Material | End Connection | Seals | Pressure Rating |
5", 6", 8" | Iron | Iron or Bronze | Flanged 125# | Buna N |
200 psi @ 100F for 5" and 6" 150 psi@ 100F for 8" |
Bronze | Flanged 150# | ||||
6", 8" | Carbon Steel | Bronze or Stainless Steel | Flanged 150# | ||
6", 8" | Stainless Steel | Stainless Steel | Flanged 150# | Viton |
This is a 6 " size Cast Iron Eaton Model 50 Basket Strainer - Part Num...
This is a 6 " size Bronze Eaton Model 50 Basket Strainer - Part Number...
This is a 8 " size Stainless Steel Eaton Model 50 Basket Strainer - Pa...
This is a 8 " size Carbon Steel Eaton Model 50 Basket Strainer - Part ...
This is a 8 " size Carbon Steel Eaton Model 50 Basket Strainer - Part ...
This is a 8 " size Cast Iron Eaton Model 50 Basket Strainer - Part Num...
This is a 8 " size Bronze Eaton Model 50 Basket Strainer - Part Number...
This is a 5 " size Cast Iron Eaton Model 50 Basket Strainer - Part Num...
This is a 5 " size Bronze Eaton Model 50 Basket Strainer - Part Number...
This is a 6 " size Stainless Steel Eaton Model 50 Basket Strainer - Pa...
This is a 6 " size Carbon Steel Eaton Model 50 Basket Strainer - Part ...
This is a 6 " size Carbon Steel Eaton Model 50 Basket Strainer - Part ...
There are two main kinds of basket strainers for pipeline applications: simplex and duplex. Duplex strainers allow for pipeline flow to be diverted to auxiliary baskets so that the line doesn't need to be shut down for maintenance or cleaning. This allows workers to empty one basket while the strainer keeps running - protecting all process machinery from debris and contaminants.
Eaton is the premiere name in industrial filtration. They have staked their claim in the world of metal industrial strainers, even taking over production of many former Hayward brand industrial models. They are dedicated to providing customers with a top quality product that will stand up to the demands of serious industrial use. See all our Eaton/Hayward strainers, filter housings, and filter bags and get a quote today.
Why buy from Commercial Industrial Supply? Unlike a regular re-seller, CIS is an Official Authorized Eaton Filtration Distributor. That means we work directly with Eaton to train our sales team, fulfill orders, and provide technical assistance. Our team has worked with Eaton strainers for years, and we are familiar with many of the common questions and concerns that arise in fitting your industrial filtration application with a new pipeline strainer. Contact us today for pricing or to get more information.
