SKU:
AMU1084CCF

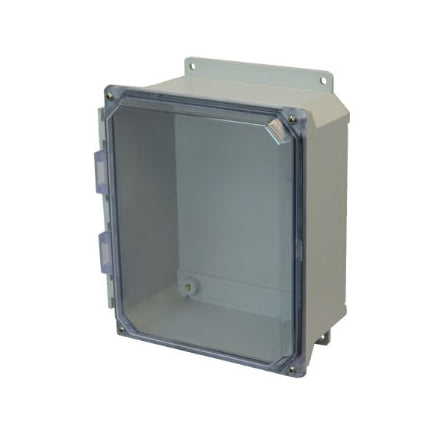

10x8x4 NEMA 4X Fiberglass Enclosure Clear Lift-Off Screw Cover Flange Mount
Shipping calculated at checkout.
10x8x4 NEMA 4X Fiberglass Enclosure Clear Lift-Off Screw Cover Flange Mount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
10x8x4 NEMA 4X Fiberglass Enclosure Clear Lift-Off Screw Cover Flan...
$87.42
Unit price
/
Unavailable
Description
Description
Secure hinge pin keeps door attached during maintenance or box use. This enclosure is part of Allied Moulded's AMU series. This box is made to protect against rain, sleet, snow, hose spray, wind blown dust and more!Features a lift-off screw cover. Ultraline enclosures have patented multi-mounting capability, great for a multitude of equipment manufacturer and industrial applications.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMU1084CCF
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 10 inch
Standard Weight (lbs): 5
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339959526
