SKU:
AM1084RTW

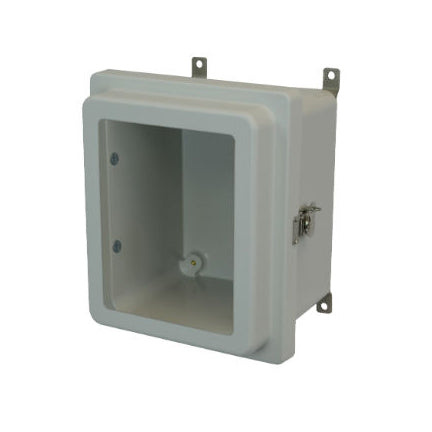

10x8x4 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cover Window
Shipping calculated at checkout.
10x8x4 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cover Window is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
10x8x4 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cover...
$147.70
Unit price
/
Unavailable
Description
Description
All enclosures are tested regularly to make sure they meet strict UL and CSA specifications. Comes standard in a light gray color. Other colors available - call for assistance. This enclosure is part of Allied Moulded's AM-R series. Our fiberglass boxes are easy to customize, punch, drill, and saw. Features a twist latch hinged cover.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1084RTW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)
Gasket Material: Closed Cell Neoprene
Latch Type: Twist Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvannealed Back Panel: PG108 Aluminum HFP: HFP108 Keylock Kit: AMKEYLOCKRC Keylock Kit With HFP: AMKEYLOCKRCHFP Pole Mount Kit: AMPOLEMNT8
Size: 10 inch
Standard Weight (lbs): 7
Standards: UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13 CSA C22.2 No. 94; Types 1, 2, 3, 3R, 4, 4X, 12, and 13
UPC Code: 85339840152
