SKU:
AM1086TW

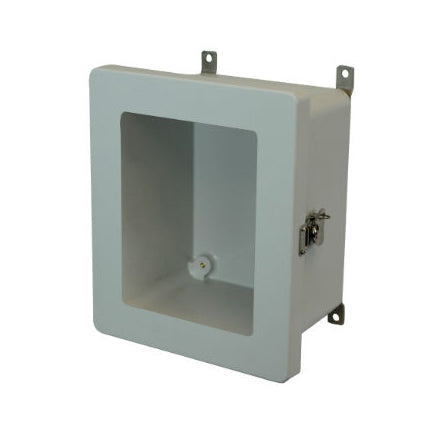

10x8x6 NEMA 4X Fiberglass Enclosure Twist Latch Hinged Cover Window
Shipping calculated at checkout.
10x8x6 NEMA 4X Fiberglass Enclosure Twist Latch Hinged Cover Window is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
10x8x6 NEMA 4X Fiberglass Enclosure Twist Latch Hinged Cover Window
$150.57
Unit price
/
Unavailable
Description
Description
Allied Moulded has invested time and research into developing the leading reinforced fiberglass material on the market. Additionally, fiberglass is a fraction of the cost of heavy and difficult to use stainless steel enclosures. For a corrosive resistant box that is affordable and made to last, trust Allied Moulded Enclosures.Features a twist latch hinged cover. This enclosure is part of Allied Moulded's AM series.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1086TW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)
Gasket Material: Closed Cell Neoprene
Latch Type: Twist Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvannealed Back Panel: PG108 Keylock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT8
Size: 10 inch
Standard Weight (lbs): 6
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339910923
