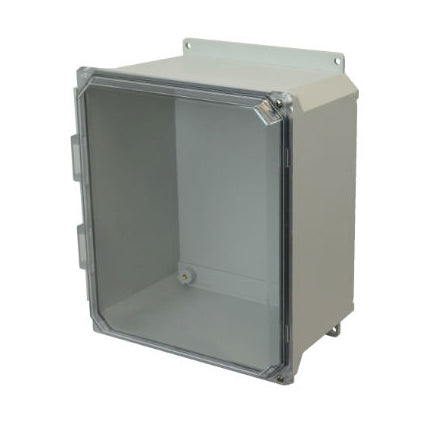

12x10x6 NEMA 4X Fiberglass Enclosure Clear Hinged Screw Cover Flange Mount
Features a tongue and groove neoprene gasket that is encased in a continuous channel. This enclosure is part of Allied Moulded's AMU series. Features a flush cover to base design for improved aesthetics. Secure hinge pin keeps door attached during maintenance or box use. Features a hinged screw cover.
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMU1206CCHF
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 12 inch
Standard Weight (lbs): 7
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339959434
SKU:
AMU1206CCHF
12x10x6 NEMA 4X Fiberglass Enclosure Clear Hinged Screw Cover Flange Mount
AMU Fiberglass Enclosure Clear Hinged Screw Cover AMU1206CCHF
Shipping calculated at checkout.
12x10x6 NEMA 4X Fiberglass Enclosure Clear Hinged Screw Cover Flange Mount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
AMU Fiberglass Enclosure Clear Hinged Screw Cover AMU1206CCHF
12x10x6 NEMA 4X Fiberglass Enclosure Clear Hinged Screw Cover Flang...
$0.00
Unit price
/
Unavailable
Description
Description
Features a tongue and groove neoprene gasket that is encased in a continuous channel. This enclosure is part of Allied Moulded's AMU series. Features a flush cover to base design for improved aesthetics. Secure hinge pin keeps door attached during maintenance or box use. Features a hinged screw cover.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMU1206CCHF
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 12 inch
Standard Weight (lbs): 7
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339959434
