SKU:
AM1206HP16

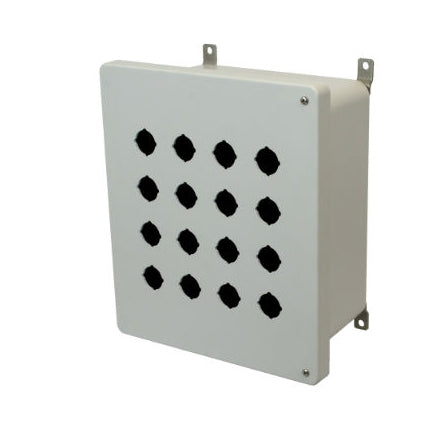

12x10x6 NEMA 4X Fiberglass Enclosure Hinged Screw Cover 16 PB Cutouts 30.5MM
AM Series Pushbutton Enclosure with Multi-Hole Hinged Screw Cover - Part: AM1206HP16
Shipping calculated at checkout.
12x10x6 NEMA 4X Fiberglass Enclosure Hinged Screw Cover 16 PB Cutouts 30.5MM is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
12x10x6 NEMA 4X Fiberglass Enclosure Hinged Screw Cover 16 PB Cutou...
$0.00
Unit price
/
Unavailable
Description
Description
This enclosure is part of Allied Moulded's AM series. Protect your electrical equipment from salt, water, chemicals and more. Comes standard in a light gray color. Other colors available - call for assistance. All Allied Moulded enclosures are rated for indoor and outdoor use. Features a hinged screw cover.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1206HP16
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Hole Plugs, Pole Mount Kit, Back Panels
Size: 12 inch
Standard Weight (lbs): 8
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339912187
