SKU:
AMU1206HW

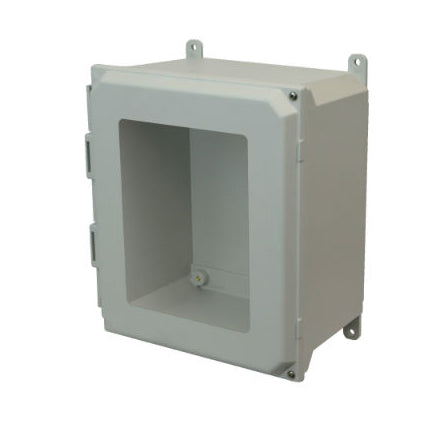

12x10x6 NEMA 4X Fiberglass Enclosure Hinged Screw Cover Window Foot Mount
AMU Fiberglass Enclosure Hinged Screw Cover Window- Part: AMU1206HW
Shipping calculated at checkout.
12x10x6 NEMA 4X Fiberglass Enclosure Hinged Screw Cover Window Foot Mount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
12x10x6 NEMA 4X Fiberglass Enclosure Hinged Screw Cover Window Foot...
$0.00
Unit price
/
Unavailable
Description
Description
Allied Moulded Products has been in the fiberglass field for over 55 years. 300 Series stainless steel external hardware. Features a hinged screw cover. This enclosure is part of Allied Moulded's AMU series. Available in up to 20" x 16" x 10" size.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMU1206HW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 12 inch
Standard Weight (lbs): 7
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339959052
