SKU:
AMP1426F

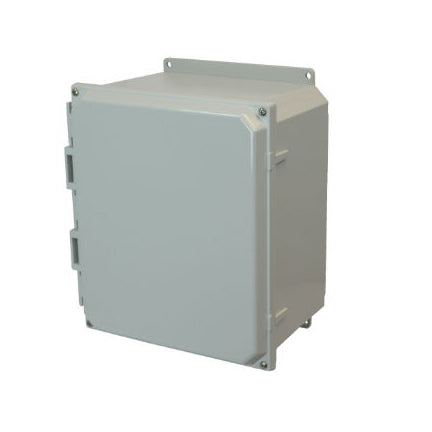

14x12x6 NEMA 4X Polycarbonate Encl Lift-Off Screw Cover Flange Mount
Shipping calculated at checkout.
14x12x6 NEMA 4X Polycarbonate Encl Lift-Off Screw Cover Flange Mount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
14x12x6 NEMA 4X Polycarbonate Encl Lift-Off Screw Cover Flange Mount
$64.93
Unit price
/
Unavailable
Description
Description
This enclosure is NEMA 4X rated for protection against rain, wind, sleet, snow, dust and more. This enclosure is part of Allied Moulded's AMP series. You can find Allied Moulded Products' enclosures throughout the industrial sector from waste water treatment plants to mining and utilities applications. Offers a lightweight and easy to modify enclosure. Features a lift-off screw cover.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMP1426F
Complies With: EN / IEC 60204-1 and 60529 Type IP66 and units rated 6P are IP68 (submersible up to 24 hours at a depth of 6 feet/1.8 meters), RoHS directive
Cover/Base Material: Polycarbonate box and cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Polycarbonate
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 14 inch
Standard Weight (lbs): 7
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13; File No. E120175CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13; File No. 89590
UPC Code: 85339993544
