SKU: AMU1648CCHF

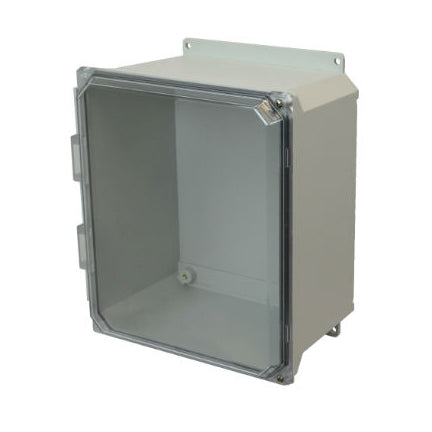

16x14x8 NEMA 4X Fiberglass Enclosure Clear Hinged Screw Cover Flange Mount

AMU Fiberglass Enclosure CLEAR Hinged Screw Cover - Part: AMU1648CCHF
Shipping calculated at checkout.
Request a Quote

Description
This enclosure is part of Allied's AMU ULTRALINE series, developed for OEM applications. Flange mount pattern retrofits competition. Features a tongue and groove neoprene gasket that is encased in a continuous channel. Features a hinged screw cover. This enclosure is part of Allied Moulded's AMU series.

Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMU1648CCHF
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 16 inch
Standard Weight (lbs): 11
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339959861
