SKU: AMU1648LF

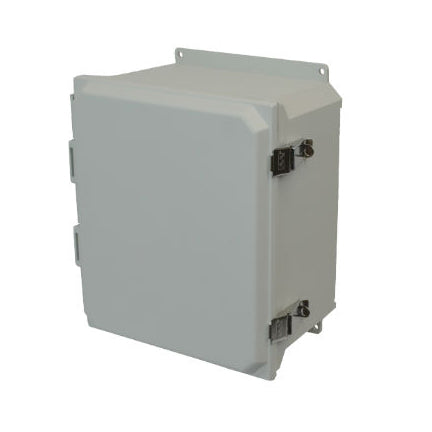

16x14x8 NEMA 4X Fiberglass Enclosure Quick-Release Latch Hinged Cover Flange Mount

Shipping calculated at checkout.
Request a Quote

Description
This enclosure is part of Allied Moulded's AMU series. This enclosure is part of Allied's AMU ULTRALINE series, developed for OEM applications. Features a flush cover to base design for improved aesthetics. Features a quick release latch hinged cover. Secure hinge pin keeps door attached during maintenance or box use.

Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMU1648LF
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Quick-Release Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 16 inch
Standard Weight (lbs): 11
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339959885
