SKU:
AM1868RW

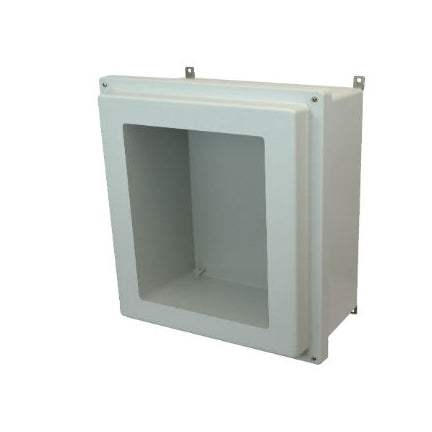

18x16x8 NEMA 4X Fiberglass Enclosure Raised Lift-Off Screw Cover Window
Shipping calculated at checkout.
18x16x8 NEMA 4X Fiberglass Enclosure Raised Lift-Off Screw Cover Window is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
18x16x8 NEMA 4X Fiberglass Enclosure Raised Lift-Off Screw Cover Wi...
$257.05
Unit price
/
Unavailable
Description
Description
For a corrosive resistant box that is affordable and made to last, trust Allied Moulded Enclosures. Various sizes and accessory options available for your different enclosure needs. This enclosure is part of Allied Moulded's AM-R series. Features a lift-off screw cover. Made by Allied Moulded Enclosures, this box was designed especially for electrical equipment.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1868RW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P186 Aluminum Back Panel: PA186 Fiberglass Back Panel: PF186 Galvannealed Back Panel: PG186 Aluminum HFP: HFP186 Keylock Kit: AMKEYLOCKRC Keylock Kit With HFP: AMKEYLOCKRCHFP Pole Mount Kit: AMPOLEMNT16
Size: 18 inch
Standard Weight (lbs): 18
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339919018
