SKU:
AM1868RTW

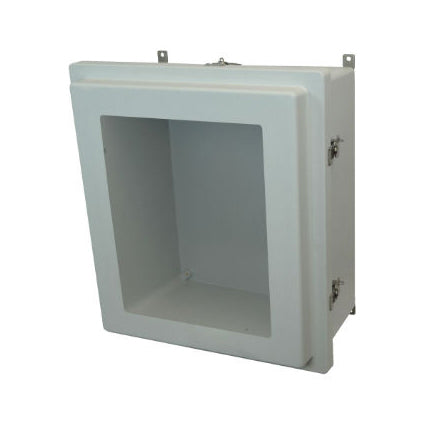

18x16x8 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cover Window
Shipping calculated at checkout.
18x16x8 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cover Window is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
18x16x8 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cove...
$276.90
Unit price
/
Unavailable
Description
Description
Allied Moulded brings over 50 years of fiberglass molding knowledge to their time-tested product line. The NEMA 4X rating means this enclosure protects against rain, sleet, snow, dirt, windblown dust, hose-directed water and corrosion, and formation of ice outside the enclosure. Features a twist latch hinged cover. This enclosure is part of Allied Moulded's AM-R series. All Allied Moulded enclosures are rated for indoor and outdoor use.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1868RTW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Twist Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P186 Aluminum Back Panel: PA186 Fiberglass Back Panel: PF186 Galvannealed Back Panel: PG186 Aluminum HFP: HFP186 Keylock Kit: AMKEYLOCKRC Keylock Kit With HFP: AMKEYLOCKRCHFP Pole Mount Kit: AMPOLEMNT16
Size: 18 inch
Standard Weight (lbs): 18
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339918967
