SKU:
AM1868T

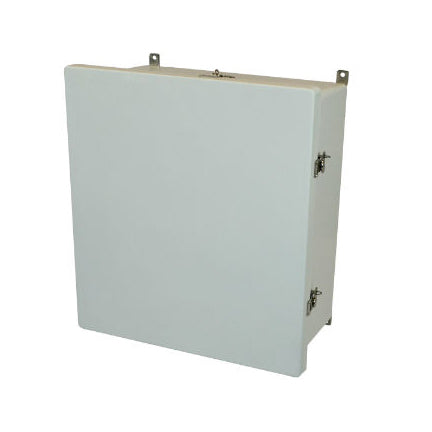

18x16x8 NEMA 4X Fiberglass Enclosure Twist Latch Hinged Cover
Shipping calculated at checkout.
18x16x8 NEMA 4X Fiberglass Enclosure Twist Latch Hinged Cover is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
18x16x8 NEMA 4X Fiberglass Enclosure Twist Latch Hinged Cover
$187.10
Unit price
/
Unavailable
Description
Description
Allied boxes are easy to mount on a wall, machine, even a pole (with pole mounting kit)! Allied Moulded has invested time and research into developing the leading reinforced fiberglass material on the market. Features a twist latch hinged cover. This enclosure is part of Allied Moulded's AM series. Protect your electrical equipment from salt, water, chemicals and more.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1868T
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Twist Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P186 Aluminum Back Panel: PA186 Fiberglass Back Panel: PF186 Galvannealed Back Panel: PG186 Keylock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT16
Size: 18 inch
Standard Weight (lbs): 17
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339918707
