SKU: AM24248RLW

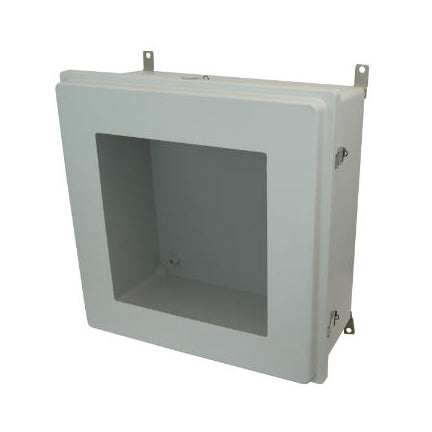

24x24x8 NEMA 4X Fiberglass Enclosure Raised Quick-Release Latch Hinged Cover Window

Shipping calculated at checkout.
Request a Quote

Description
Features a snap latch hinged cover. This enclosure is part of Allied Moulded's Control series. Various sizes and accessory options available for your different enclosure needs. Additionally, fiberglass is a fraction of the cost of heavy and difficult to use stainless steel enclosures. Enclosures are available with clear polycarbonate windows, pushbutton holes and more. Call us for any customizations you don't see available.

Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM24248RLW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Quick-Release Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 24 inch
Standard Weight (lbs): 26
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339924272
