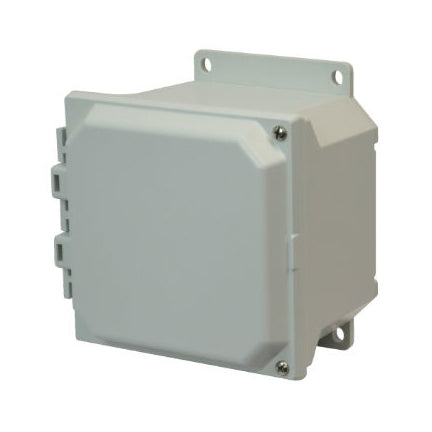

6x6x4 NEMA 4X Fiberglass Enclosure Hinged Screw Cover Flange Mount
Great for extreme temperature and applications where corrosion is an issue. This box is made to protect against rain, sleet, snow, hose spray, wind blown dust and more! Features a hinged screw cover. This enclosure is part of Allied Moulded's AMU series. Secure hinge pin keeps door attached during maintenance or box use.
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMU664HF
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 6 inch
Standard Weight (lbs): 3
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339958178
SKU:
AMU664HF
6x6x4 NEMA 4X Fiberglass Enclosure Hinged Screw Cover Flange Mount
AMU Fiberglass Enclosure Hinged Screw Cover - Part: AMU664HF
