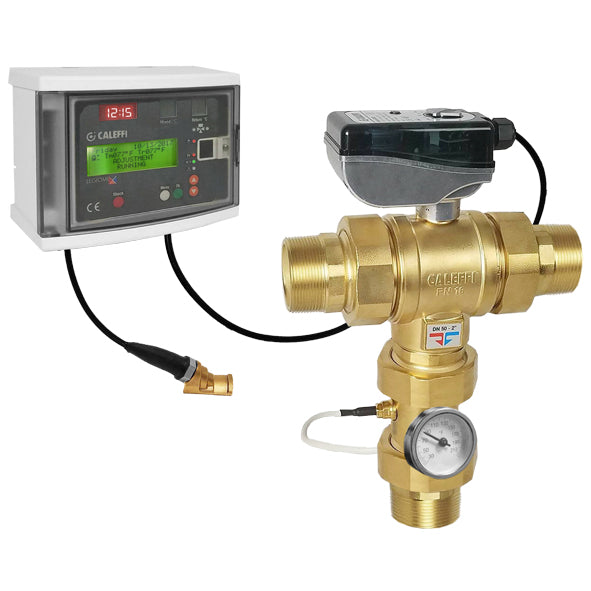

1-1/2" Caleffi 6000 LEGIOMIX Electronic Mixing ValveNPT Male Union (600084A)

Electronic mixing valve with optional selectable programs for thermal disinfection of hot water recirculation system to kill Legionella bacteria. Code number includes: three-way ball valve 3-wire floating control actuator controller/user interface with DIN rail mounting bracket mixed outlet temperature sensor/probe return temperature sensor/probe mixed outlet temperature gauge optional Modbus-to-BACnet gateway for BAS integration Power: 24 VAC - 50/60 Hz - 6 VA. Adjustment temperature range: 70 ﾗ 185oF. Disinfection temperature range: 100 ﾗ 185oF. Max. working pressure: 230 psi. Max. inlet temperature: 212oF. Protection class: IP 54 (controller). Meets requirements of ANSI/NSF 372-2011 and certified to ASSE 1017, CSA B15.3, UPC, IPC, Low Lead Laws and listed by ICC-ES for use in accordance with the U.S. and Canadian plumbing codes.
