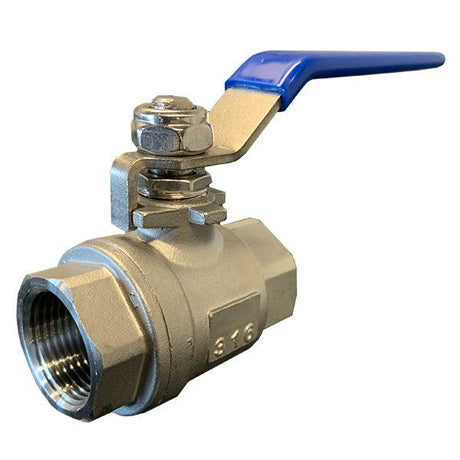

Stainless Steel Ball Valves

(6 products)

For demanding conditions and high pressure applications, stainless steel ball valves are a good choice. Stainless Steel can handle temperatures from -25F to over 400F, not to mention pressure ratings of around 1000 psi. That’s a tough little valve. Our stainless ball valves are full port. This means your flow won’t be restricted when the ball valve is open. These are quarter-turn valves, so operation is as simple as turning a handle 90 degrees. If you want to restrict flow, these ball valves feature a locking handle that can be partially turned.

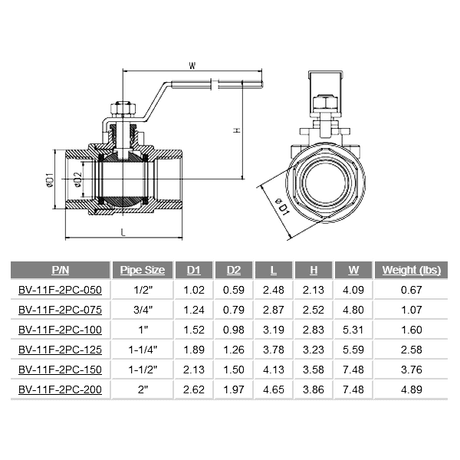

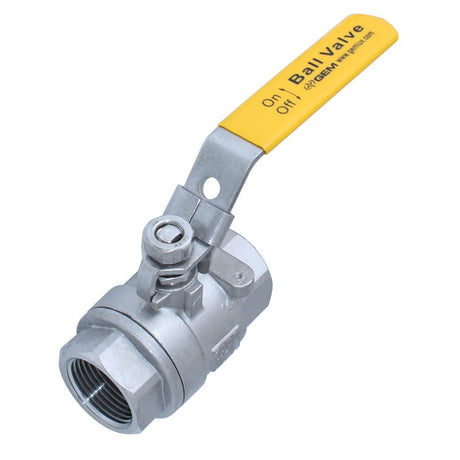

Titan BV 24/25 Ball Valve
Brand Model Body Material Valve Type Size Range Actions
Titan BV 24 (FxF)
BV 25 (MxF)		 Stainless Steel Full Port 1/4" - 2" Spec Sheet Request a Quote
Seat Material Ball Material
Delrin or PTFE Stainless Steel



We carry stainless steel ball valves from Titan that are ideal for mounting on strainers and allow for complete and rapid cleaning of strainer screens. If you want to automate the process, these valves are capable of direct mount actuation, meeting ISO 5211 standards. These valves are available with female x female or male x female ends, which gives you the freedom to connect practically any pipeline or strainer. For more information on these valves or to request a quote, call us at (866) 777-8001 or fill out our quote request form.
View as

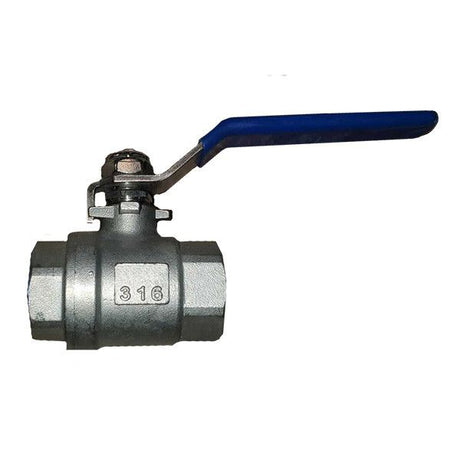

How Our Full Port (SS) / Threaded Ball Valves Work

Our stainless steel ball valve products feature a blow-out proof stem and lockable handle for easy, reliable use. They are also easy to install with threaded connection ends. How does a ball valve work? Inside the valve body is a “ball” that turns when you turn the handle outside. This ball has an opening in the center that can be turned to an on or off position.

On a full port ball valve when the valve is “on” the opening in the center of the ball is the same size as the surrounding pipe. This means there is no restriction on your normal pipeline flow. It’s like there’s no valve there at all!

Are you ready to buy or need assistance finding the right valve? If so, speak with one of our experienced product specialists by calling (866) 777-8001 or complete our easy to use Price Quote Form!
