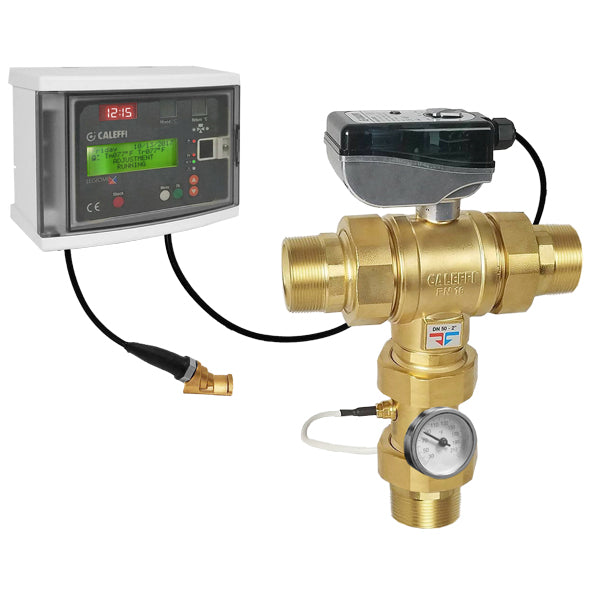

1-1/4" Caleffi 6000 LEGIOMIX Electronic Mixing ValveSweat Union (600079A)

Electronic mixing valve with optional selectable programs for thermal disinfection of hot water recirculation system to kill Legionella bacteria. Code number includes: three-way ball valve 3-wire floating control actuator controller/user interface with DIN rail mounting bracket mixed outlet temperature sensor/probe return temperature sensor/probe mixed outlet temperature gauge optional Modbus-to-BACnet gateway for BAS integration Power: 24 VAC - 50/60 Hz - 6 VA. Adjustment temperature range: 70 ﾗ 185oF. Disinfection temperature range: 100 ﾗ 185oF. Max. working pressure: 230 psi. Max. inlet temperature: 212oF. Protection class: IP 54 (controller). Meets requirements of ANSI/NSF 372-2011 and certified to ASSE 1017, CSA B15.3, UPC, IPC, Low Lead Laws and listed by ICC-ES for use in accordance with the U.S. and Canadian plumbing codes.
