SKU:
AMP1084HF

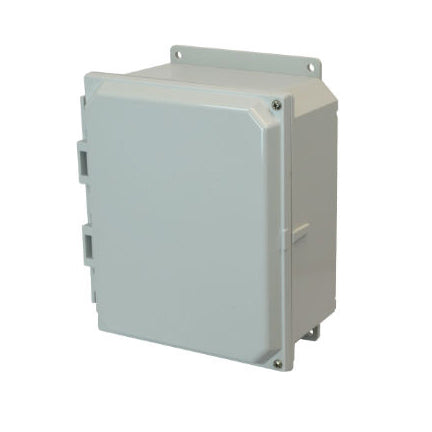

10x8x4 NEMA 4X Polycarbonate Encl Hinged Screw Cover Flange Mount
Shipping calculated at checkout.
10x8x4 NEMA 4X Polycarbonate Encl Hinged Screw Cover Flange Mount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
10x8x4 NEMA 4X Polycarbonate Encl Hinged Screw Cover Flange Mount
$45.99
Unit price
/
Unavailable
Description
Description
Features a hinged screw cover. Made for industrial applications, Allied Moulded Polyline enclosures are made of durable polycarbonate. This enclosure is part of Allied Moulded's AMP series. This enclosure is NEMA 4X rated for protection against rain, wind, sleet, snow, dust and more. Unlike metal enclosures, polycarbonate is an electrical insulator.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMP1084HF
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: Polycarbonate box and cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Polycarbonate
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 10 inch
Standard Weight (lbs): 4
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339993247
