SKU:
AMP1084

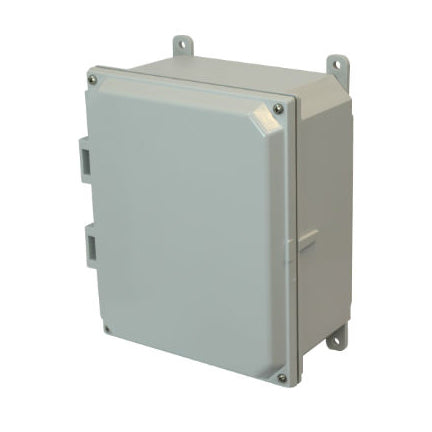

10x8x4 NEMA 4X Polycarbonate Encl Lift-Off Screw Cover Foot Mount
Shipping calculated at checkout.
10x8x4 NEMA 4X Polycarbonate Encl Lift-Off Screw Cover Foot Mount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
10x8x4 NEMA 4X Polycarbonate Encl Lift-Off Screw Cover Foot Mount
$39.52
Unit price
/
Unavailable
Description
Description
Allied Moulded brings over 55 years of experience to the table with their carefully developed material formulas and enclosure designs. Offers a lightweight and easy to modify enclosure. This enclosure is part of Allied Moulded's AMP series. Features a lift-off screw Mount cover. Choose from clear or opaque cover options as well as latch types and various sizes.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMP1084
Complies With: EN / IEC 60204-1 and 60529 Type IP66 and units rated 6P are IP68 (submersible up to 24 hours at a depth of 6 feet/1.8 meters), RoHS directive
Cover/Base Material: Polycarbonate box and cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Polycarbonate
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 10 inch
Standard Weight (lbs): 4
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13; File No. E120175 CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13; File No. 89590
UPC Code: 85339993131
