SKU:
AMP1084L

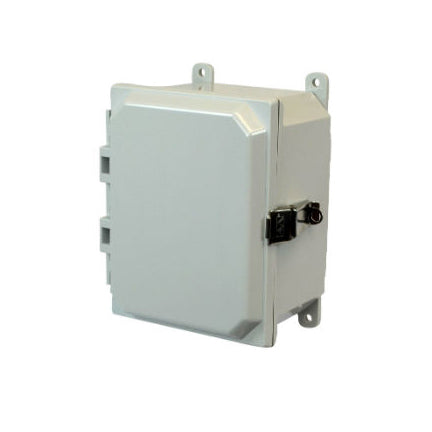

10x8x4 NEMA 4X Polycarbonate Encl Quick-Release Latch Hinged Cover Foot Mount
Shipping calculated at checkout.
10x8x4 NEMA 4X Polycarbonate Encl Quick-Release Latch Hinged Cover Foot Mount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
10x8x4 NEMA 4X Polycarbonate Encl Quick-Release Latch Hinged Cover ...
$53.10
Unit price
/
Unavailable
Description
Description
Unlike metal enclosures, polycarbonate is an electrical insulator. This enclosure is part of Allied Moulded's AMP series. Features a quick release latch cover. The Allied Moulded Polyline AMP series of enclosures was developed to be an alternative to steel. Offers a lightweight and easy to modify enclosure.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMP1084L
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: Polycarbonate box and cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Quick-Release Latch
Mounting Feet Material: Polycarbonate
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 10 inch
Standard Weight (lbs): 4
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339993254
