SKU:
AM1086
10x8x6 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover
Shipping calculated at checkout.
10x8x6 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
10x8x6 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover
$68.05
Unit price
/
Unavailable
Description
Description

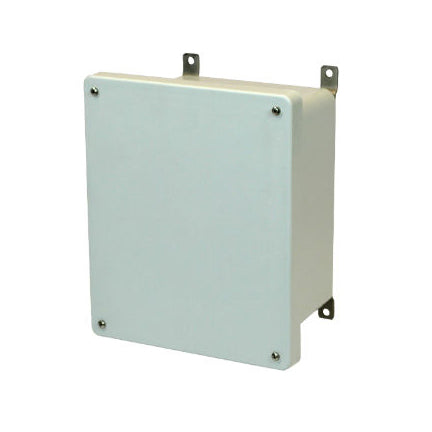

Made by Allied Moulded Enclosures, this box was designed especially for electrical equipment. This enclosure is part of Allied Moulded's AM series. This enclosure has a NEMA 4X rating for indoor and outdoor use. Features a hinged screw cover. Allied boxes are easy to mount on a wall, machine, even a pole (with pole mounting kit)!
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1086
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)
Gasket Material: Closed Cell Neoprene
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvannealed Back Panel: PG108 Keylock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT8
Size: 10 inch
Standard Weight (lbs): 6
Standards: UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13 CSA C22.2 No. 94; Types 1, 2, 3, 3R, 4, 4X, 12, and 13
UPC Code: 85339910862
