SKU:
AM1206RHW

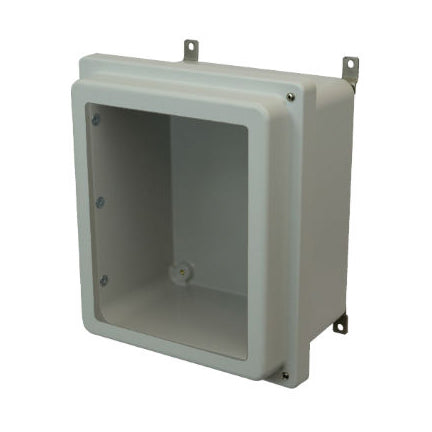

12x10x6 NEMA 4X Fiberglass Enclosure Raised Hinged Screw Cover Window
Shipping calculated at checkout.
12x10x6 NEMA 4X Fiberglass Enclosure Raised Hinged Screw Cover Window is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
12x10x6 NEMA 4X Fiberglass Enclosure Raised Hinged Screw Cover Window
$158.53
Unit price
/
Unavailable
Description
Description
Ultraguard reinforced fiberglass is formulated to resist effects of UV exposure, plus discoloration and yellowing. Allied boxes are easy to mount on a wall, machine, even a pole (with pole mounting kit)! Comes standard in a light gray color. Other colors available - call for assistance. This enclosure is part of Allied Moulded's AM-R series. Features a hinged screw cover.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1206RHW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P120 Aluminum Back Panel: PA120 Fiberglass Back Panel: PF120 Galvannealed Back Panel: PG120 Aluminum HFP: HFP120 Keylock Kit: AMKEYLOCKRC Keylock Kit With HFP: AMKEYLOCKRCHFP Pole Mount Kit: AMPOLEMNT10
Size: 12 inch
Standard Weight (lbs): 9
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339912538
