SKU:
AMP1206

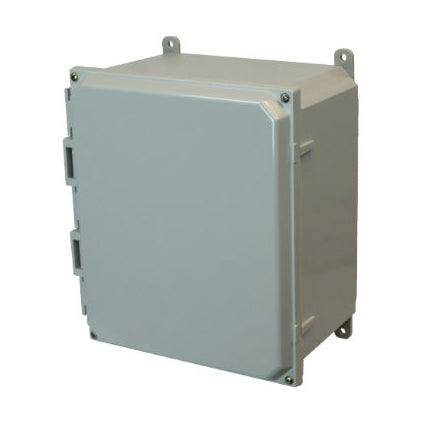

12x10x6 NEMA 4X Polycarbonate Encl Lift-Off Screw Cover Foot Mount
Shipping calculated at checkout.
12x10x6 NEMA 4X Polycarbonate Encl Lift-Off Screw Cover Foot Mount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
12x10x6 NEMA 4X Polycarbonate Encl Lift-Off Screw Cover Foot Mount
$52.62
Unit price
/
Unavailable
Description
Description
The Allied Moulded Polyline AMP series of enclosures was developed to be an alternative to steel.Features a lift-off screw cover. This enclosure is NEMA 4X rated for protection against rain, wind, sleet, snow, dust and more. Need to customize it for your application? Easily punch holes, drill and saw the enclosure. This enclosure is part of Allied Moulded's AMP series.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMP1206
Complies With: EN / IEC 60204-1 and 60529 Type IP66 and units rated 6P are IP68 (submersible up to 24 hours at a depth of 6 feet/1.8 meters), RoHS directive
Cover/Base Material: Polycarbonate box and cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Polycarbonate
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 12 inch
Standard Weight (lbs): 5
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13; File No. E120175 CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13; File No. 89590
UPC Code: 85339993292
