SKU:
AMU1426W

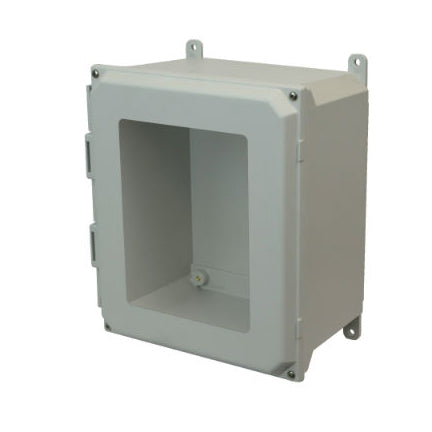

14x12x6 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover Window Foot Mount
Shipping calculated at checkout.
14x12x6 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover Window Foot Mount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
14x12x6 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover Window Fo...
$197.19
Unit price
/
Unavailable
Description
Description
Features a lift-off screw cover. Available with a standard or clear cover. Made of fiberglass reinforced polyester, this enclosure is NEMA 4X rated. Features a tongue and groove neoprene gasket that is encased in a continuous channel. This enclosure is part of Allied Moulded's AMU series.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMU1426W
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 14 inch
Standard Weight (lbs): 9
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339952480
