SKU:
AM1426L

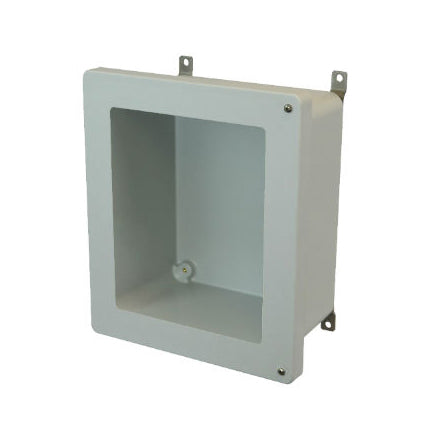

14x12x6 NEMA 4X Fiberglass Enclosure Quick-Release Latch Hinged Cover
Shipping calculated at checkout.
14x12x6 NEMA 4X Fiberglass Enclosure Quick-Release Latch Hinged Cover is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
14x12x6 NEMA 4X Fiberglass Enclosure Quick-Release Latch Hinged Cover
$123.76
Unit price
/
Unavailable
Description
Description
Protect your electrical equipment from salt, water, chemicals and more. This enclosure is part of Allied Moulded's AM series. The NEMA 4X rating means this enclosure protects against rain, sleet, snow, dirt, windblown dust, hose-directed water and corrosion, and formation of ice outside the enclosure. Comes standard in a light gray color. Other colors available - call for assistance.Features a snap latch hinged cover.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1426L
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Quick-Release Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P142Aluminum Back Panel: PA142Fiberglass Back Panel: PF142Galvannealed Back Panel: PG142Keylock Kit With HFP: AMKEYLOCKKFCPole Mount Kit: AMPOLEMNT12
Size: 14 inch
Standard Weight (lbs): 12
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339914297
