AM1426RHW

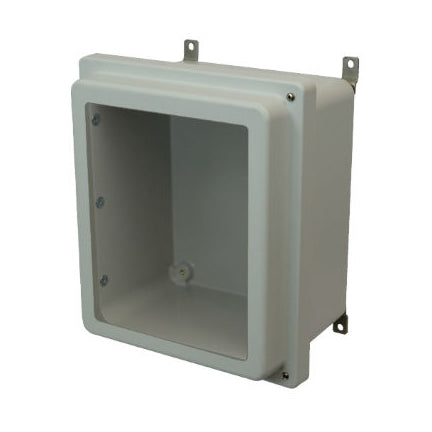

14x12x6 NEMA 4X Fiberglass Enclosure Raised Hinged Screw Cover Window
Shipping calculated at checkout.
14x12x6 NEMA 4X Fiberglass Enclosure Raised Hinged Screw Cover Window is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
14x12x6 NEMA 4X Fiberglass Enclosure Raised Hinged Screw Cover Window
$192.06
Unit price
/
Unavailable
Description
Description
Allied enclosures are made from a unique ULTRAGUARD formulation of fiberglass reinforced polyester. This enclosure is part of Allied Moulded's AM-R series. Additionally, fiberglass is a fraction of the cost of heavy and difficult to use stainless steel enclosures. Fiberglass electrical enclosures are not only easier to use and modify than metal enclosures. They also are lighter, resist corrosion, and maintain seal integrity. Features a hinged screw cover.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1426RHW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P142 Aluminum Back Panel: PA142 Fiberglass Back Panel: PF142 Galvannealed Back Panel: PG142 Aluminum HFP: HFP142 Keylock Kit: AMKEYLOCKRC Keylock Kit With HFP: AMKEYLOCKRCHFP Pole Mount Kit: AMPOLEMNT12
Size: 14 inch
Standard Weight (lbs): 12
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339914587
