SKU:
AMP1426CCNL

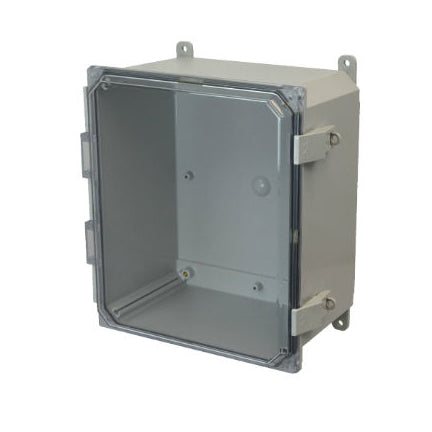

14x12x6 NEMA 4X Polycarbonate Encl Nonmetal Latch Clear Hinged Cover Foot Mount
Shipping calculated at checkout.
14x12x6 NEMA 4X Polycarbonate Encl Nonmetal Latch Clear Hinged Cover Foot Mount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
14x12x6 NEMA 4X Polycarbonate Encl Nonmetal Latch Clear Hinged Cove...
$80.18
Unit price
/
Unavailable
Description
Description
Available in sizes up to 18" x 16" 10". Unlike metal enclosures, polycarbonate is an electrical insulator. Allied Moulded brings over 55 years of experience to the table with their carefully developed material formulas and enclosure designs. This enclosure is part of Allied Moulded's AMP series. Features a nonmetal latch hinged cover.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMP1426CCNL
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: Polycarbonate box and clear polycarbonate cover
Gasket Material: Closed cell neoprene cord gasket
Mounting Feet Material: Polycarbonate
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 14 inch
Standard Weight (lbs): 7
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339993520
