AM1648P30

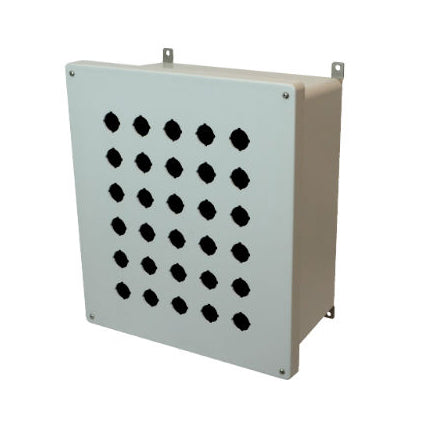

16x14x8 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover 30 PB Cutouts 30.5MM
Shipping calculated at checkout.
16x14x8 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover 30 PB Cutouts 30.5MM is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
16x14x8 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover 30 PB Cut...
$149.85
Unit price
/
Unavailable
Description
Description
Allied enclosures are made from a unique ULTRAGUARD formulation of fiberglass reinforced polyester. They are also resistant to extreme temperatures and are designed with flame retardant properties. This enclosure is part of Allied Moulded's AM series. Features a hinged screw cover. Comes standard in a light gray color. Other colors available - call for assistance.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1648P30
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Hole Plugs, Pole Mount Kit, Back Panels
Size: 16 inch
Standard Weight (lbs): 13
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339916581
