SKU: AM1648RW

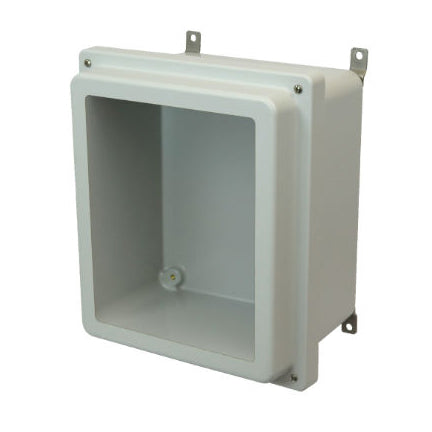

16x14x8 NEMA 4X Fiberglass Enclosure Raised Lift-Off Screw Cover Window

Shipping calculated at checkout.
Request a Quote

Description
Allied Moulded brings over 50 years of fiberglass molding knowledge to their time-tested product line. Enclosures are available with clear polycarbonate windows, pushbutton holes and more. Call us for any customizations you don't see available. Features a lift-off screw cover. This enclosure is part of Allied Moulded's AM-R series. Additionally, fiberglass is a fraction of the cost of heavy and difficult to use stainless steel enclosures.

Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1648RW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P164 Aluminum Back Panel: PA164 Fiberglass Back Panel: PF164 Galvannealed Back Panel: PG164 Aluminum HFP: HFP164 Keylock Kit: AMKEYLOCKRC Keylock Kit With HFP: AMKEYLOCKRCHFP Pole Mount Kit: AMPOLEMNT14
Size: 16 inch
Standard Weight (lbs): 14
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339916857
