SKU:
AM1648RTW

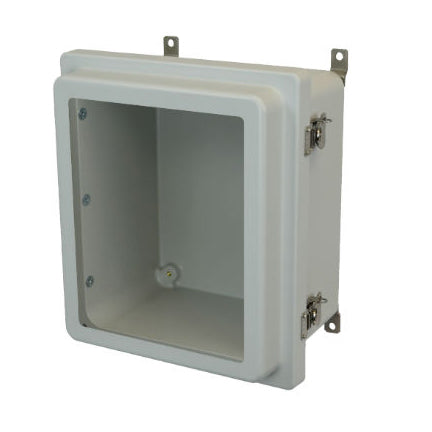

16x14x8 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cover Window
Shipping calculated at checkout.
16x14x8 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cover Window is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
16x14x8 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cove...
$233.45
Unit price
/
Unavailable
Description
Description
This enclosure has a NEMA 4X rating for indoor and outdoor use. The NEMA 4X rating means this enclosure protects against rain, sleet, snow, dirt, windblown dust, hose-directed water and corrosion, and formation of ice outside the enclosure. Enclosures are available with clear polycarbonate windows, pushbutton holes and more. Call us for any customizations you don't see available. This enclosure is part of Allied Moulded's AM-R series. Features a twist latch hinged cover.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1648RTW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Twist Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P164 Aluminum Back Panel: PA164 Fiberglass Back Panel: PF164 Galvannealed Back Panel: PG164 Aluminum HFP: HFP164 Keylock Kit: AMKEYLOCKRCKeylock Kit With HFP: AMKEYLOCKRCHFPPole Mount Kit: AMPOLEMNT14
Size: 16 inch
Standard Weight (lbs): 14
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339916789
