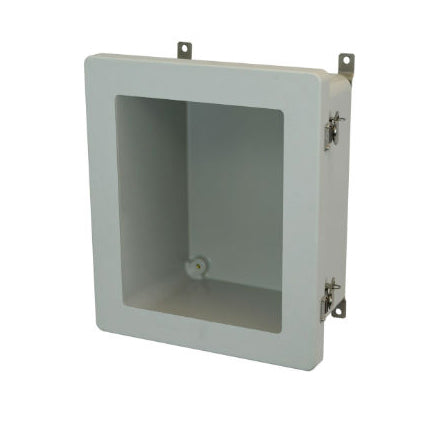

16x14x8 NEMA 4X Fiberglass Enclosure Twist Latch Hinged Cover Window
Shipping calculated at checkout.
16x14x8 NEMA 4X Fiberglass Enclosure Twist Latch Hinged Cover Window is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
16x14x8 NEMA 4X Fiberglass Enclosure Twist Latch Hinged Cover Window
$223.94
Unit price
/
Unavailable
Description
Description
This enclosure is part of Allied Moulded's AM series. The NEMA 4X rating means this enclosure protects against rain, sleet, snow, dirt, windblown dust, hose-directed water and corrosion, and formation of ice outside the enclosure. Comes standard in a light gray color. Other colors available - call for assistance. Protect your electrical equipment from salt, water, chemicals and more. Features a twist latch hinged cover.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1648TW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Twist Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P164 Aluminum Back Panel: PA164 Fiberglass Back Panel: PF164 Galvannealed Back Panel: PG164 Keylock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT14
Size: 16 inch
Standard Weight (lbs): 13
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339916543
