SKU: AMU1860TWF

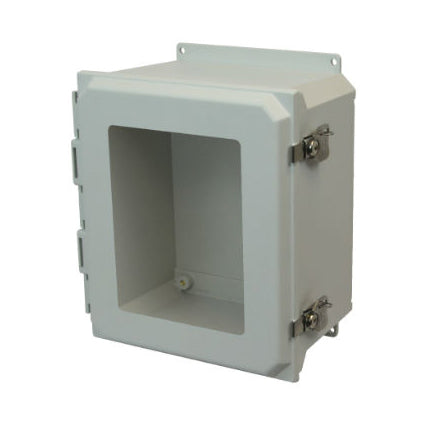

16x14x8 NEMA 4X Fiberglass Enclosure Twist Latch Hinged Cover Window Flange Mount

Shipping calculated at checkout.
Request a Quote

Description
Ultraline enclosures have patented multi-mounting capability, great for a multitude of equipment manufacturer and industrial applications. Flange mount pattern retrofits competition. Optional accessories include hole plugs, vent kits, pole mount kits and more. Features a twist latch hinged cover. This enclosure is part of Allied Moulded's AMU series.

Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMU1860TWF
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Twist Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 16 inch
Standard Weight (lbs): 14
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339962175
