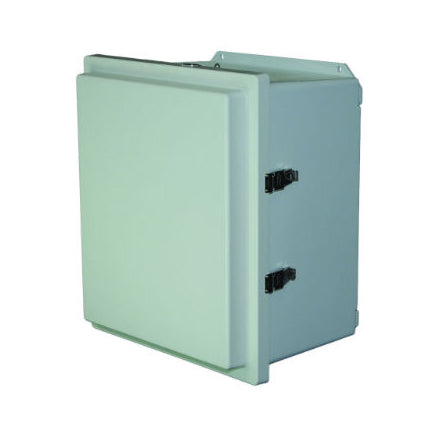

Protect your electrical equipment from salt, water, chemicals and more. Features a snap latch hinged cover. Allied Moulded has invested time and research into developing the leading reinforced fiberglass material on the market. The NEMA 4X rating means this enclosure protects against rain, sleet, snow, dirt, windblown dust, hose-directed water and corrosion, and formation of ice outside the enclosure. This enclosure is part of Allied Moulded's AMHD-R series.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMHD1860RLF
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Quick-Release Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 18 inch
Standard Weight (lbs): 18
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339994763
