SKU: AM1868H

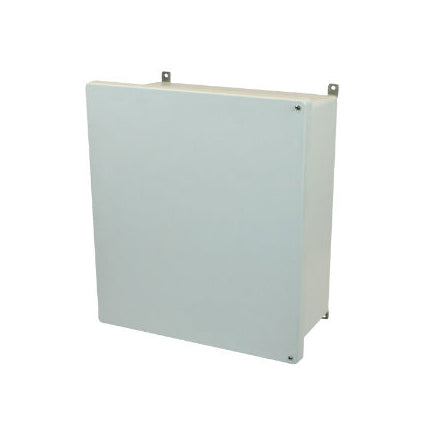

18x16x8 NEMA 4X Fiberglass Enclosure Hinged Screw Cover

Shipping calculated at checkout.


Description

Allied enclosures are made from a unique ULTRAGUARD formulation of fiberglass reinforced polyester. They are also resistant to extreme temperatures and are designed with flame retardant properties. Features a hinged screw cover. Various sizes and accessory options available for your different enclosure needs. This enclosure is part of Allied Moulded's AM series.

Additional Info

Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1868H
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P186 Aluminum Back Panel: PA186 Fiberglass Back Panel: PF186 Galvannealed Back Panel: PG186 Keylock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT16
Size: 18 inch
Standard Weight (lbs): 17
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339918691
