Description
Description

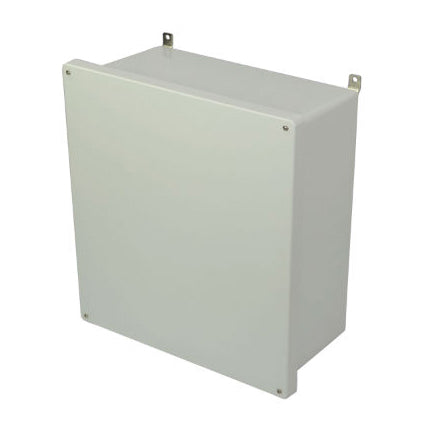

This enclosure is part of Allied Moulded's AM series. Built tough, Allied fiberglass enclosures can stand up demanding environments like chemical plants, oil refineries and irrigation systems. Ultraguard reinforced fiberglass is formulated to resist effects of UV exposure, plus discoloration and yellowing. For a corrosive resistant box that is affordable and made to last, trust Allied Moulded Enclosures. Features a lift-off screw cover.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1868
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P186 Aluminum Back Panel: PA186 Fiberglass Back Panel: PF186 Galvannealed Back Panel: PG186 Keylock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT16
Size: 18 inch
Standard Weight (lbs): 17
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339918684
