18x16x8 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cover
Shipping calculated at checkout.
18x16x8 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cover is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

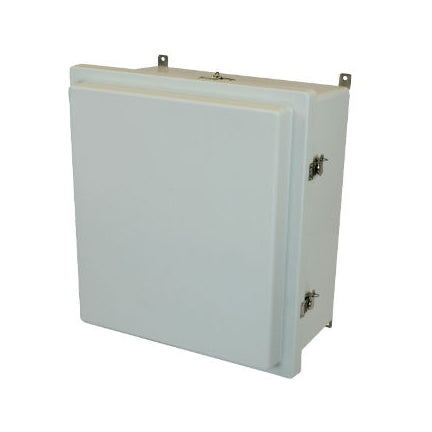

18x16x8 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cover
$194.13
Unit price
/
Unavailable
Description
Description
This enclosure is part of Allied Moulded's AM-R series. The NEMA 4X rating means this enclosure protects against rain, sleet, snow, dirt, windblown dust, hose-directed water and corrosion, and formation of ice outside the enclosure. Ultraguard reinforced fiberglass is formulated to resist effects of UV exposure, plus discoloration and yellowing. Features a twist latch hinged cover. For a corrosive resistant box that is affordable and made to last, trust Allied Moulded Enclosures.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1868RT
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Twist Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P186 Aluminum Back Panel: PA186 Fiberglass Back Panel: PF186 Galvannealed Back Panel: PG186 Aluminum HFP: HFP186 Keylock Kit: AMKEYLOCKRC Keylock Kit With HFP: AMKEYLOCKRCHFP Pole Mount Kit: AMPOLEMNT16
Size: 18 inch
Standard Weight (lbs): 18
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339918950
