SKU: AM2068

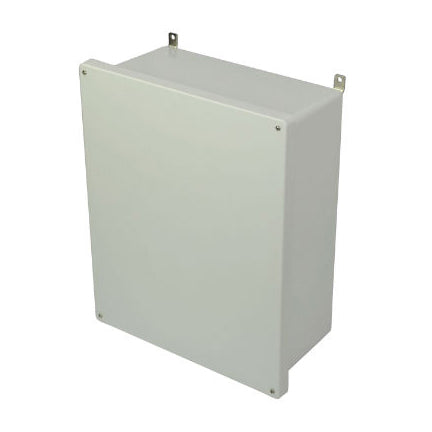

20x16x8 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover

Shipping calculated at checkout.


Description

Allied boxes are easy to mount on a wall, machine, even a pole (with pole mounting kit)! All enclosures are tested regularly to make sure they meet strict UL and CSA specifications. Features a lift-off screw cover. This enclosure is part of Allied Moulded's AM series. Ultraguard reinforced fiberglass is formulated to resist effects of UV exposure, plus discoloration and yellowing.

Additional Info

Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM2068
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Painted Steel Back Panel: P206 Aluminum Back Panel: PA206 Fiberglass Back Panel: PF206 Galvannealed Back Panel: PG206 Keylock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT16
Size: 20 inch
Standard Weight (lbs): 18
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339920687
