AM2068RHW

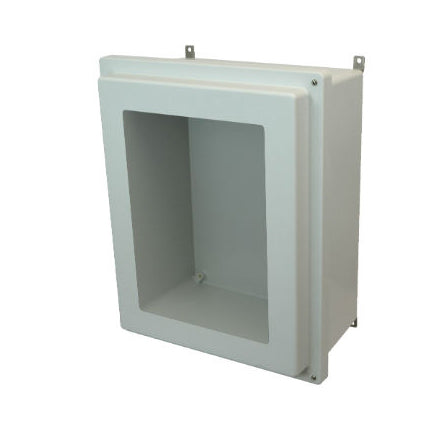

20x16x8 NEMA 4X Fiberglass Enclosure Raised Hinged Screw Cover Window
Shipping calculated at checkout.
20x16x8 NEMA 4X Fiberglass Enclosure Raised Hinged Screw Cover Window is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
20x16x8 NEMA 4X Fiberglass Enclosure Raised Hinged Screw Cover Window
$389.50
Unit price
/
Unavailable
Description
Description
Allied Moulded brings over 50 years of fiberglass molding knowledge to their time-tested product line. Enclosures are available with clear polycarbonate windows, pushbutton holes and more. Call us for any customizations you don't see available. This enclosure is part of Allied Moulded's AM-R series. Features a hinged screw cover. Various sizes and accessory options available for your different enclosure needs.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM2068RHW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 20 inch
Standard Weight (lbs): 20
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339921042
