SKU:
AM24248RT

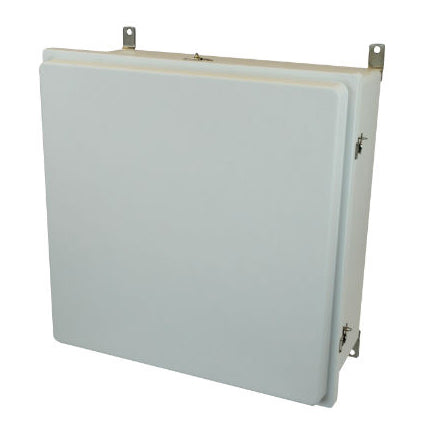

24x24x8 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cover
Shipping calculated at checkout.
24x24x8 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cover is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
24x24x8 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cover
$555.90
Unit price
/
Unavailable
Description
Description
This enclosure is part of Allied Moulded's Control series. Protect your electrical equipment from salt, water, chemicals and more. The NEMA 4X rating means this enclosure protects against rain, sleet, snow, dirt, windblown dust, hose-directed water and corrosion, and formation of ice outside the enclosure. Additionally, fiberglass is a fraction of the cost of heavy and difficult to use stainless steel enclosures.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM24248RT
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Twist Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 24 inch
Standard Weight (lbs): 26
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339924241
