SKU:
AM30240RLW

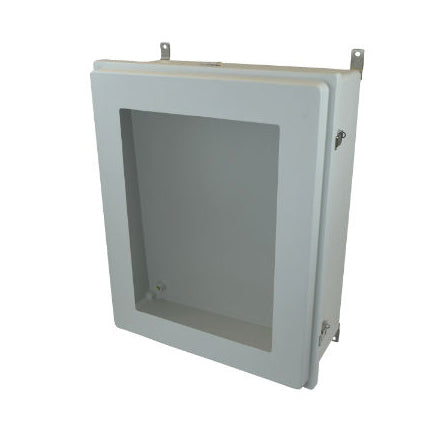

30x24x10 NEMA 4X Fiberglass Enclosure Raised Quick-Release Latch Hinged Cover Window
Shipping calculated at checkout.
30x24x10 NEMA 4X Fiberglass Enclosure Raised Quick-Release Latch Hinged Cover Window is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
30x24x10 NEMA 4X Fiberglass Enclosure Raised Quick-Release Latch Hi...
$779.43
Unit price
/
Unavailable
Description
Description
This enclosure is part of Allied Moulded's Control series. The NEMA 4X rating means this enclosure protects against rain, sleet, snow, dirt, windblown dust, hose-directed water and corrosion, and formation of ice outside the enclosure. Various sizes and accessory options available for your different enclosure needs. Features a snap latch hinged cover. Protect your electrical equipment from salt, water, chemicals and more.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM30240RLW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Quick-Release Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 30 inch
Standard Weight (lbs): 29
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339930310
