SKU:
AM30240RTW

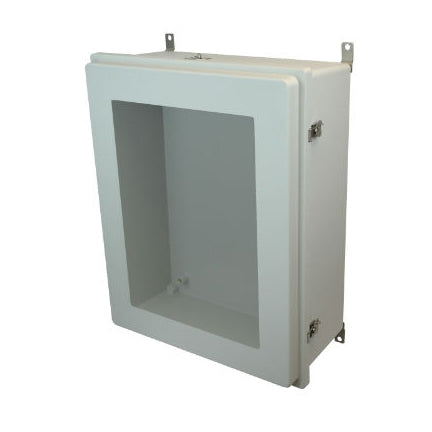

30x24x10 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cover Window
Shipping calculated at checkout.
30x24x10 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cover Window is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
30x24x10 NEMA 4X Fiberglass Enclosure Raised Twist Latch Hinged Cov...
$779.43
Unit price
/
Unavailable
Description
Description
This enclosure is part of Allied Moulded's Control series. Ultraguard reinforced fiberglass is formulated to resist effects of UV exposure, plus discoloration and yellowing. Enclosures are available with clear polycarbonate windows, pushbutton holes and more. Call us for any customizations you don't see available. Allied boxes are easy to mount on a wall, machine, even a pole (with pole mounting kit)! Features a twist latch hinged cover.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM30240RTW
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Twist Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 30 inch
Standard Weight (lbs): 29
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339930303
