SKU: AM603612L3PT

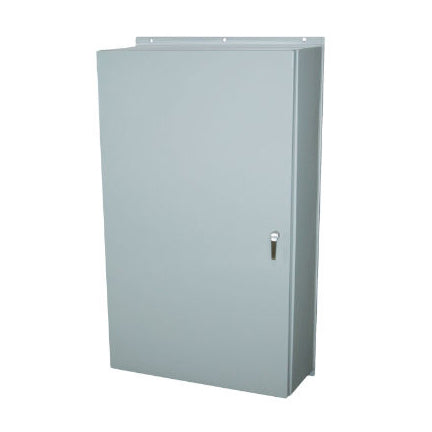

60x36x12 NEMA 4X Wall Mount Fiberglass Enclosure 3 Point Latch Cover

Shipping calculated at checkout.


Description

Allied enclosures are made from a unique ULTRAGUARD formulation of fiberglass reinforced polyester. Features a 3 point latch cover. This enclosure is part of Allied Moulded's Empire series. Additionally, fiberglass is a fraction of the cost of heavy and difficult to use stainless steel enclosures. The NEMA 4X rating means this enclosure protects against rain, sleet, snow, dirt, windblown dust, hose-directed water and corrosion, and formation of ice outside the enclosure.

Additional Info

Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM603612L3PT
Complies With: NEMA Types 1, 4, and 4XEN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: Gel coat fiberglass reinforced polyester - RTM
Gasket Material: Closed cell neoprene cord gasket
Latch Type: 3 Point Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panel, Hole Plugs, Filter Kit, Print Pocket and Pole Mount Kit
Size: 60 inch
Standard Weight (lbs): 103
Standards: UL 508A, UL 50 and UL 50E Types 1, 4, and 4X; File No. E120175CSA C22.2 No. 94 Types 1, 4, and 4X; File No. 89590
UPC Code: 85339994862
