SKU:
AM603616L3PT

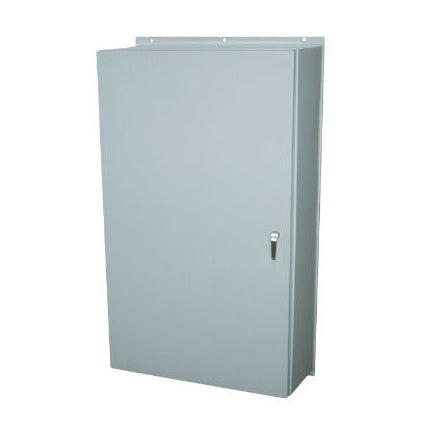

60x36x16 NEMA 4X Wall Mount Fiberglass Enclosure 3 Point Latch Cover
Shipping calculated at checkout.
60x36x16 NEMA 4X Wall Mount Fiberglass Enclosure 3 Point Latch Cover is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
60x36x16 NEMA 4X Wall Mount Fiberglass Enclosure 3 Point Latch Cover
$2,659.78
Unit price
/
Unavailable
Description
Description
Allied boxes are easy to mount on a wall, machine, even a pole (with pole mounting kit)! Additionally, fiberglass is a fraction of the cost of heavy and difficult to use stainless steel enclosures. Features a 3 point latch cover. Protect your electrical equipment from salt, water, chemicals and more. This enclosure is part of Allied Moulded's Empire series.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM603616L3PT
Complies With: NEMA Types 1, 4, and 4XEN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: Gel coat fiberglass reinforced polyester - RTM
Gasket Material: Closed cell neoprene cord gasket
Latch Type: 3 Point Latch
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panel, Hole Plugs, Filter Kit, Print Pocket and Pole Mount Kit
Size: 60 inch
Standard Weight (lbs): 124
Standards: UL 508A, UL 50 and UL 50E Types 1, 4, and 4X; File No. E120175CSA C22.2 No. 94 Types 1, 4, and 4X; File No. 89590
UPC Code: 85339994879
