SKU:
AMU664HWF

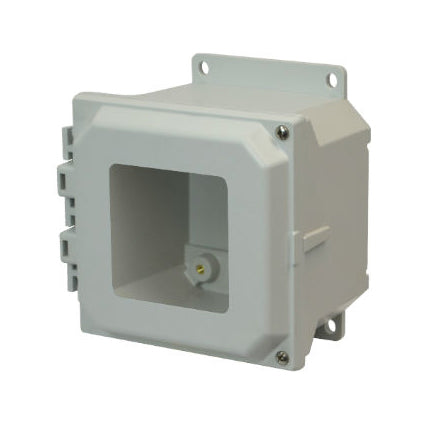

6x6x4 NEMA 4X Fiberglass Enclosure Hinged Screw Cover Window Flange Mount
Shipping calculated at checkout.
6x6x4 NEMA 4X Fiberglass Enclosure Hinged Screw Cover Window Flange Mount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
6x6x4 NEMA 4X Fiberglass Enclosure Hinged Screw Cover Window Flange...
$112.12
Unit price
/
Unavailable
Description
Description
This enclosure is part of Allied Moulded's AMU series. Features a hinged screw cover. Flange mount pattern retrofits competition. Allied Moulded Products has been in the fiberglass field for over 55 years. This box is made to protect against rain, sleet, snow, hose spray, wind blown dust and more!
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMU664HWF
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 6 inch
Standard Weight (lbs): 3
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339958192
