SKU:
AM664

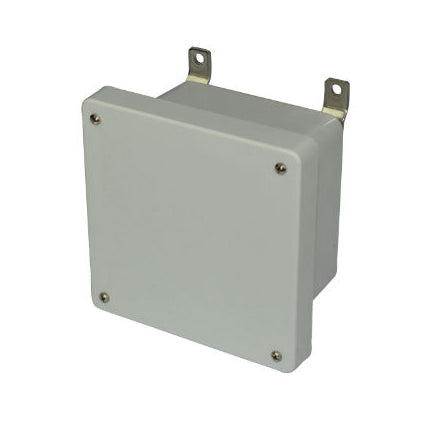

6x6x4 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover
Shipping calculated at checkout.
6x6x4 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
6x6x4 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover
$59.19
Unit price
/
Unavailable
Description
Description
All Allied Moulded enclosures are rated for indoor and outdoor use. This enclosure is part of Allied Moulded's AM series. Features a lift-off screw cover. Ultraguard reinforced fiberglass is formulated to resist effects of UV exposure, plus discoloration and yellowing. For a corrosive resistant box that is affordable and made to last, trust Allied Moulded Enclosures.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM664
Complies With: EN / IEC 60204-1 and 60529 Type IP66 and units rated 6P are IP68 (submersible up to 24 hours at a depth of 6 feet/1.8 meters) , RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 6 inch
Standard Weight (lbs): 4
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13; File No. 89590
UPC Code: 85339906643
