SKU:
AMU664W

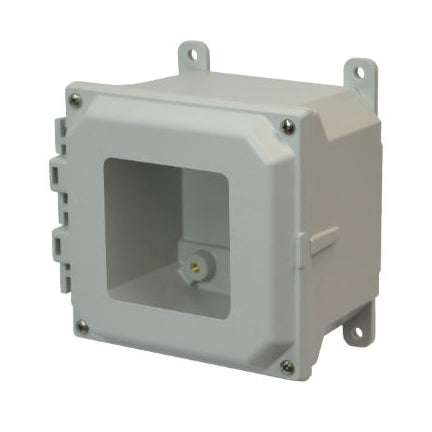

6x6x4 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover Window Foot Mount
Shipping calculated at checkout.
6x6x4 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover Window Foot Mount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
6x6x4 NEMA 4X Fiberglass Enclosure Lift-Off Screw Cover Window Foot...
$106.45
Unit price
/
Unavailable
Description
Description
This enclosure is part of Allied Moulded's AMU series. This enclosure is part of Allied's AMU ULTRALINE series, developed for OEM applications. Features a tongue and groove neoprene gasket that is encased in a continuous channel. Features a lift-off screw cover. Protect electrical equipment like controls, instrumentation, and more from the elements.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMU664W
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 6 inch
Standard Weight (lbs): 3
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339958017
