SKU:
AMP664CC

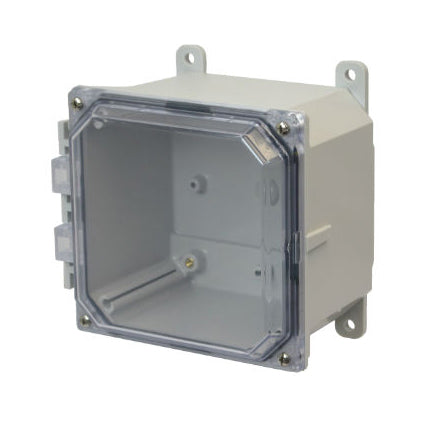

6x6x4 NEMA 4X Polycarbonate Encl Clear Lift-Off Screw Cover Foot Mount
Shipping calculated at checkout.
6x6x4 NEMA 4X Polycarbonate Encl Clear Lift-Off Screw Cover Foot Mount is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
6x6x4 NEMA 4X Polycarbonate Encl Clear Lift-Off Screw Cover Foot Mount
$39.60
Unit price
/
Unavailable
Description
Description
This enclosure is part of Allied Moulded's AMP series. Allied Moulded brings over 55 years of experience to the table with their carefully developed material formulas and enclosure designs. Choose from clear or opaque cover options as well as latch types and various sizes. Features a lift-off screw cover. Offers a lightweight and easy to modify enclosure.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AMP664CC
Complies With: EN / IEC 60204-1 and 60529 Type IP66 and units rated 6P are IP68 (submersible up to 24 hours at a depth of 6 feet/1.8 meters), RoHS directive
Cover/Base Material: Polycarbonate box and cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Polycarbonate
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Size: 6 inch
Standard Weight (lbs): 2
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13; File No. E120175 CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13; File No. 89590
UPC Code: 85339992820
