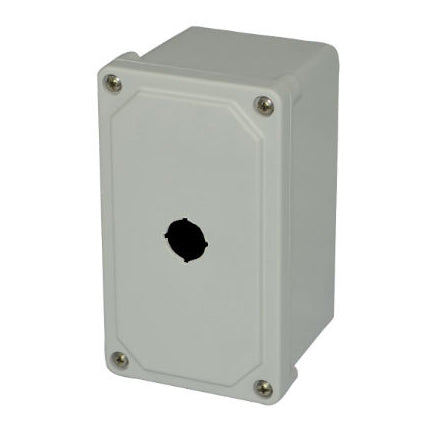

7x4x3 NEMA 4X INLINE PB Fiberglass Enclosure Lift-Off Screw Cover 1 PB Cutout 22.5MM
Shipping calculated at checkout.
7x4x3 NEMA 4X INLINE PB Fiberglass Enclosure Lift-Off Screw Cover 1 PB Cutout 22.5MM is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
7x4x3 NEMA 4X INLINE PB Fiberglass Enclosure Lift-Off Screw Cover 1...
$45.16
Unit price
/
Unavailable
Description
Description
This enclosure is part of Allied Moulded's AM series. Enclosures are available with clear polycarbonate windows, pushbutton holes and more. Call us for any customizations you don't see available. Additionally, fiberglass is a fraction of the cost of heavy and difficult to use stainless steel enclosures. For a corrosive resistant box that is affordable and made to last, trust Allied Moulded Enclosures. Features a lift-off screw cover.
Additional Info
Additional Info
Back Panel Insert Material: Brass
Brand: Allied Moulded Products
Catalog Number: AM1PB22
Complies With: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Gasket Material: Closed cell neoprene cord gasket
Latch Type: Screw Cover
Mounting Feet Material: Stainless Steel
Optional Accessories: Aluminum Back Panel: PA74 Fiberglass Back Panel: PF74
Size: 7 inch
Standard Weight (lbs): 2
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
UPC Code: 85339910046
